Real data · built 6 October 2026

Six real datasets, and what each one teaches

Each figure below is made from openly licensed measurements, with the data downloaded and checked against a recorded checksum by tools/make_showcase.py. They show the two halves of the name. Range: on an HDR screen, the values above the marked "SDR white" appear brighter than the figure's white; on any other screen one sees the ordinary figure. Use the buttons to compare; the switch never happens on its own.

Depth: every file here is a rendering, in the profile's terms. An 8-bit gain-map JPEG shows the data, but its levels are too coarse to stand in for it — and each file says so, stating how much data one stored level spans. Each HDR file declares its own mapping in its metadata: the unit, the range, the knee and its rule, how much data one stored level spans, where the data came from, and digests that tie it to that data and to the SDR figure beside it. udeep.read_metadata reads it back. None of these figures is for diagnosis or for measurement.

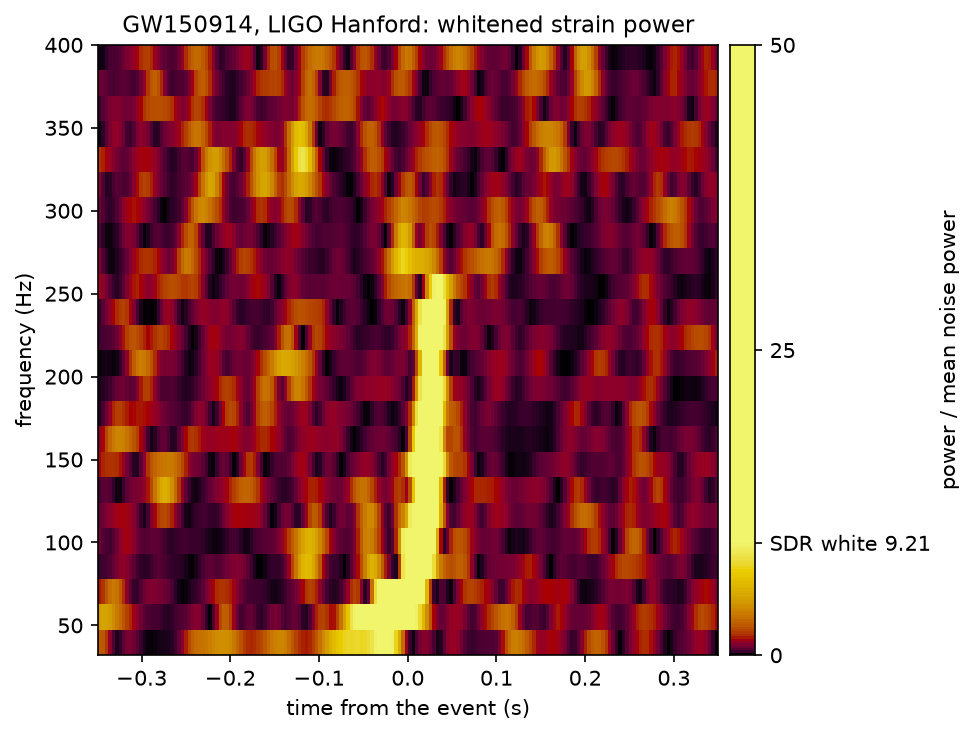

Spectrogram of whitened LIGO Hanford strain around GW150914; the chirp rises from about 40 to 250 hertz at time zero, above the noise.

Open this file on its own, to save it or to view it at full size.

Statistical knee

The first gravitational wave detected: GW150914

Two black holes merging, as recorded by the LIGO Hanford detector on 14 September 2015. The picture is the power of the whitened strain in time and frequency, in units of the mean noise power.

Knee: 9.21 × the mean noise power: the level that noise alone exceeds once in 10,000 tiles
Why it is valid: In 9,216 independent noise-only tiles, 92 exceed the one-in-100 level; 92.2 are expected (± 9.6). The build stops if this check fails
Above white: 115 of the 4,320 tiles shown, peaking at 46.7 × the mean noise power; 2.9 % of the figure
Noise model: exponential (χ² with two degrees of freedom) per tile
Data: GWOSC, H1, 32 s at 4096 Hz · CC BY 4.0 [1, 2]

The first version of this figure used the raw strain and failed its own check: noise crossed the knee 45 times in 9,984 tiles, where one was expected. Whitening the data fixed it. A statistical knee is only as good as the noise model behind it.

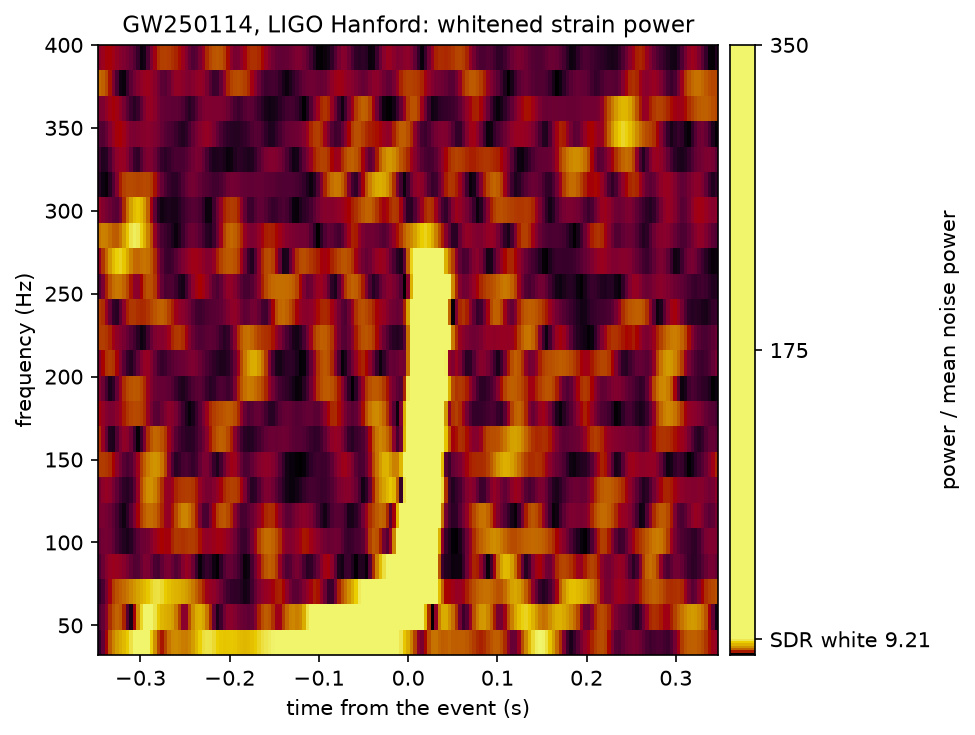

Spectrogram of whitened LIGO Hanford strain around GW250114; a strong chirp rises from about 40 to 280 hertz, visible from 0.3 seconds before the merger.

Open this file on its own, to save it or to view it at full size.

Statistical knee · a large range above it

The clearest gravitational wave so far: GW250114

Recorded on 14 January 2025, from two black holes of about 34 and 32 solar masses. Its network signal-to-noise ratio of 78.6 is about three times that of the first detection above. A 2026 paper in Nature reports signatures of the post-merger black hole's horizon in this signal [12].

Knee: the same as above: 9.21 × the mean noise power, the one-in-10,000 level
Why it is valid: In 95,232 independent noise-only tiles, 1,001 exceed the one-in-100 level (952 ± 31 expected), and 14 exceed the knee (9.5 expected)
Above white: 245 of the 4,296 tiles shown, peaking at 327 × the mean noise power
Declared range: 0 to 350 × the mean noise power
Data: GWOSC, H1, 256 s cut from a 4096 s file at 4096 Hz; all data-quality flags pass · CC BY 4.0 [1, 13]

This is where HDR has most to offer. In SDR the whole signal is one flat shape, because everything above the knee is white. The signal itself spans a factor of 35 above the knee, and that structure is what appears above white.

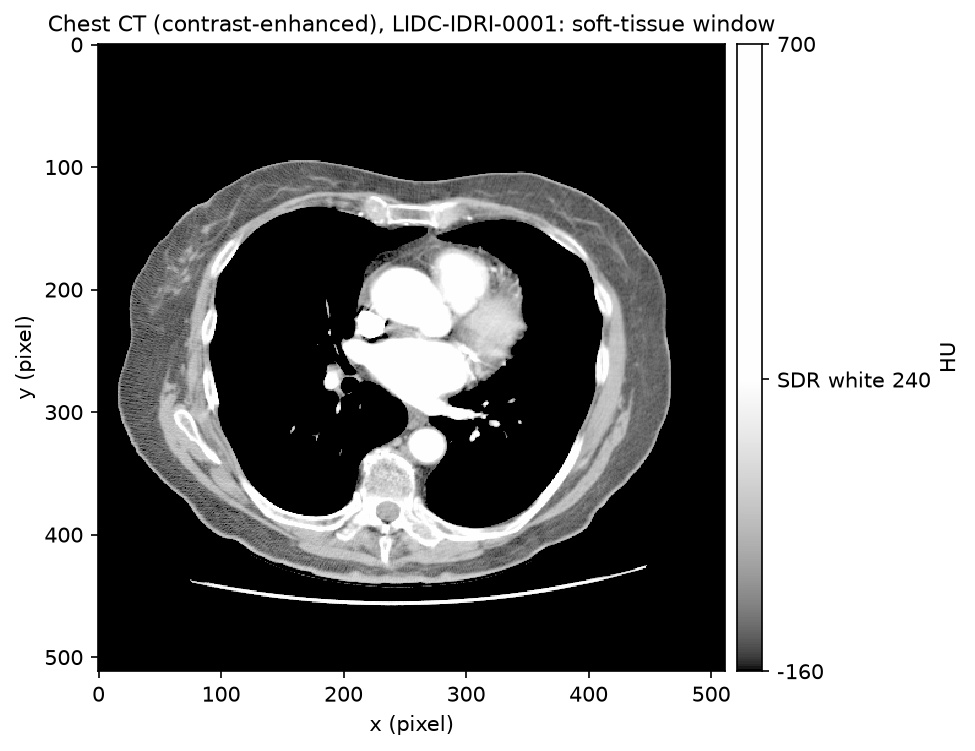

Contrast-enhanced chest CT slice in a soft-tissue window; the heart chambers, great vessels and bone are white in SDR.

Open this file on its own, to save it or to view it at full size.

Preset knee

A chest CT, contrast-enhanced

One slice from a public lung-imaging collection, shown in the standard soft-tissue window. In SDR the contrast-filled heart chambers and vessels, and the bone, are all the same flat white. Above white, they separate.

Knee: 240 HU, the top of the soft-tissue window (width 400, level 40)
Declared range: −160 to 700 HU
Above white: 5.1 % of the slice; 89 % of those pixels are contrast-filled blood at 240–500 HU
Scanner: GE, 120 kV, standard kernel, 2.5 mm slices; 16-bit stored values
Data: LIDC-IDRI-0001, The Cancer Imaging Archive · CC BY 3.0 [3, 4, 5, 6]

The cost of the range, stated. The top of the range decides how the brightness above white is shared out:

Range top	Blood, 384 HU	Bone, 663 HU	Pixels above the top
1900 HU	1.34 × white	1.93 ×	0.02 % of the slice
1000 HU	1.43 ×	2.55 ×	0.11 %
700 HU (used)	1.67 ×	3.75 ×	0.22 %

With the top at 700 HU, the 0.22 % of pixels denser than that all sit at the peak and cannot be told apart. Not for diagnosis: diagnostic display is regulated, and no clinical evidence exists for this mode.

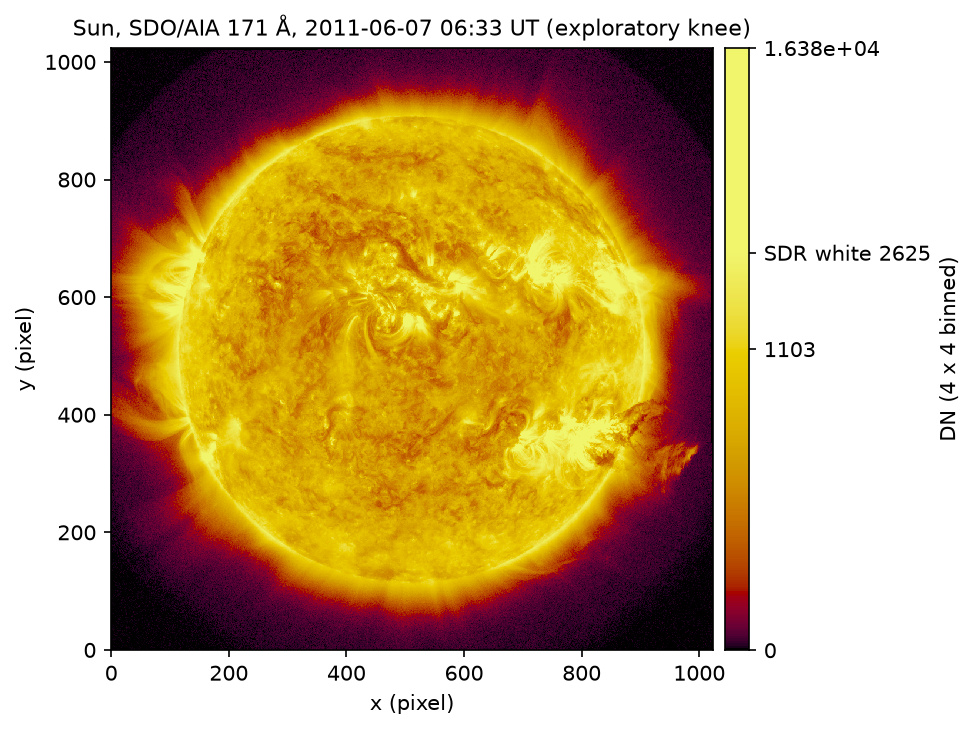

The Sun in extreme ultraviolet at 171 angstroms; active regions and loops at the limb are the brightest parts.

Open this file on its own, to save it or to view it at full size.

Exploratory knee

The Sun at 171 Å

The solar corona seen by the Solar Dynamics Observatory on 7 June 2011 at 06:33 UT. Active regions are far brighter than the quiet disk.

Knee: 2,625 DN, the 99th percentile of the unmasked pixels. A percentile has no physical meaning, so the figure is labelled exploratory
Masked: 198 pixels at or above 16,383 DN, which may contain a saturated detector pixel. They are held at white
Above white: 0.8 % of the figure
Stretch: asinh, 0 to 16,383 DN
Data: SDO/AIA level 1.5, 1024² (each pixel a 4 × 4 sum), from the SunPy sample data · NASA, not copyrighted [7]

Why the mask matters: the brightest pixels in this image are the least trustworthy. The header reports 29 saturated pixels in the original. Lifting them above white would draw the eye to a detector limit, not to the Sun.

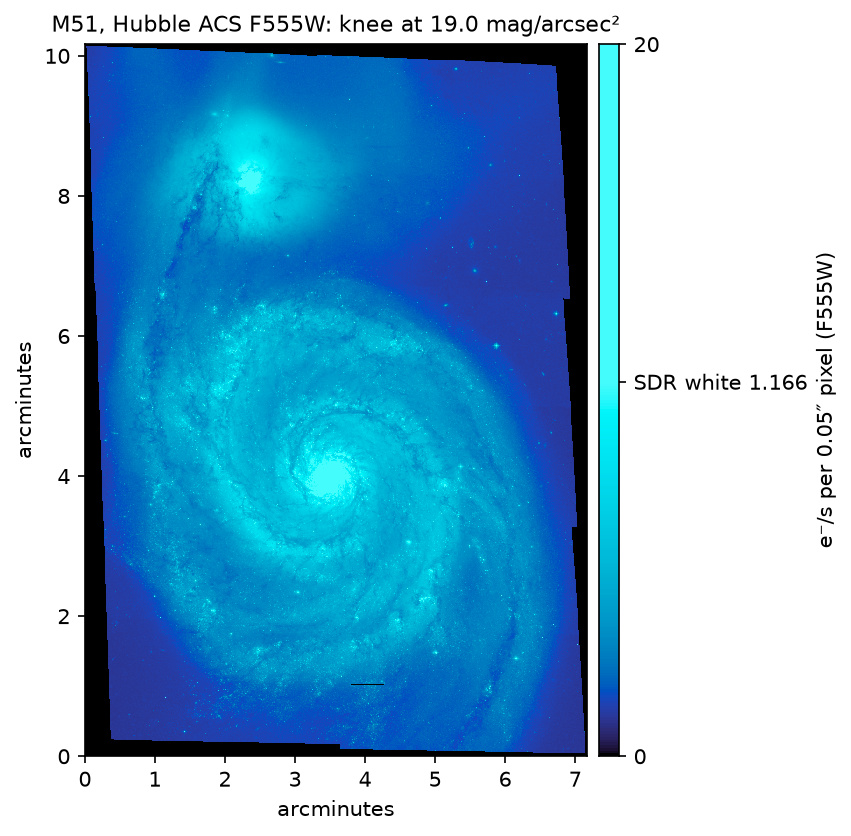

The Whirlpool Galaxy M51 and its companion NGC 5195 in visible light; the nuclei and star clusters are the brightest parts.

Open this file on its own, to save it or to view it at full size.

Physical knee

The Whirlpool Galaxy, from Hubble

M51 and its companion NGC 5195, from the Hubble Heritage mosaic taken with the Advanced Camera for Surveys in January 2005. This is the calibrated science image in one filter, not the colour picture.

Knee: 19.0 magnitudes per square arcsecond (ST system): a surface brightness, 1.17 e⁻/s per pixel
How it is derived: The archive's README gives the unit as electrons per second per 0.05″ pixel; with the header's calibration constant, 1 e⁻/s is 19.17 mag/arcsec²
Above white: 0.5 % of the pixels: the two nuclei and the brightest star-forming knots
Declared range: 0 to 20 e⁻/s (15.9 mag/arcsec²), asinh stretch; 43 binned pixels are brighter and sit at the peak
Data: HST programme 10452, filter F555W, 12,200 × 8,600 pixels, averaged 8 × 8 · MAST, public [10, 11]

Not masked, and it should be. The README says bright foreground stars are saturated. This file carries no per-pixel quality flags, so those pixels are not excluded here. The minimum-area filter keeps isolated points at white, but a conforming figure would use the mission's quality maps. The sky background is not subtracted.

Pipeline output

With the EHT's published treatment (restored to 17.1 μas)

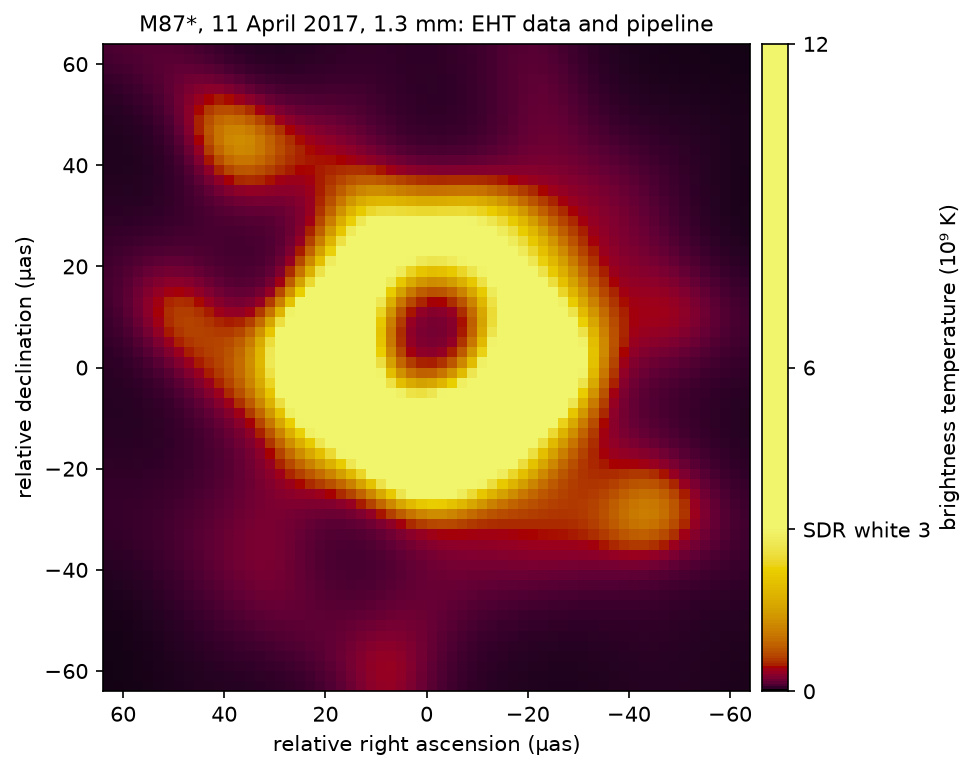

The ring of emission around the black hole M87 star, about 40 microarcseconds across, brighter in the south, with a dark centre.

Open this file on its own, to save it or to view it at full size.

Proportional mapping · a case where HDR adds little

The black hole in M87

Reconstructed here from the Event Horizon Telescope's published measurements of 11 April 2017, using the collaboration's own released imaging pipeline. Radio brightness is light, so the mapping is proportional: screen brightness is in true proportion to brightness temperature.

White: 3 × 10⁹ K; the peak, 1.09 × 10¹⁰ K, is 3.6 × white
Checks: Fit to the data: χ² 0.72 (closure phases), 0.82 (closure amplitudes), 0.96 (visibilities). Total flux 0.596 Jy. Ring radius about 18 μas, against a published diameter of 42 ± 3 μas. Centre at 10 % of the peak
One change: The pipeline's Fourier transform was set to direct (exact) in place of nfft
Data: EHT 2019-D01-01 (ODC-PDDL) and pipeline 2019-D01-02 [8, 9]

What the three buttons show. With white at 3 × 10⁹ K, the clipped SDR figure loses the ring's structure and HDR restores it. But the third button shows an ordinary SDR figure scaled to the peak, and it shows the same structure with nothing clipped. This image spans less than 4 × above its white, so SDR is enough. HDR pays off when the range is larger, as in the CT and the galaxy.

The published treatment. In the EHT's imaging paper [9], this pipeline's image is restored with a circular Gaussian of 17.1 μas, to match the resolution of the other pipelines, and the published images are the average of three pipelines treated this way. The second row of buttons applies that restoring step. The peak falls to 6.2 × 10⁹ K, the centre fills in to 47 % of the peak, and the south stays 1.25 times brighter than the north. It is one of the three images that went into the published average: the other two pipelines need software that was not run here.

This is our run of the pipeline, not the published image. In the unrestored output, the faint knots away from the ring come from the reconstruction and should not be read as real features.
